Improve production flow
Move parts from headers to secondary operations faster and make work in process more efficient.
Industrial material handling
Move more parts.
Lift less.

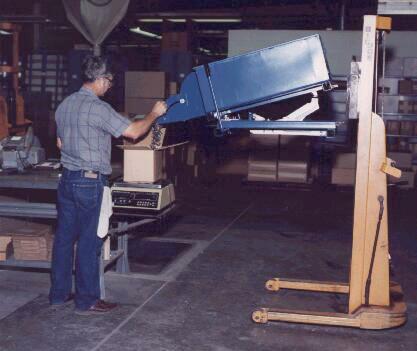

The Parts Handler is an efficient, versatile device for handling large volumes of parts—keeping work mobile, accessible and at a practical working height.
U.S. Patent No. 4,270,232
Built for the floor.Designed to let equipment do the lifting.
Product overview
Make secondary operations faster and easier.
Parts can be taken away from headers and loaded into degreasing, heat treating or similar machines without lifting or scooping.
Keep work accessible
Keep parts mobile and at a working height for easier handling throughout production.
Reduce repetitive movement
Limit constant wrist and arm movement associated with repetitive lifting and scooping.
Let equipment lift
Reduce back strain and the potential costs associated with workplace injuries.
StackableSave valuable floor space. The top unit may be unloaded while stacked.
Divider availableLoad smaller quantities of two different parts at the same time.
The patented Parts Handler
Gravity-assisted flow, controlled from the front.
The Parts Handler is a steel-constructed bin mounted on a steel frame. The front of the bin is hinged to the lower frame, while the rear is elevated by a hydraulic unit.
Either of two handles at the front sides controls the hydraulic unit. Parts flow is managed by lowering or raising the chute, and a valve beneath the chute lowers the rear of the bin.
↗
Hydraulic liftElevates the rear of the bin
⇢
Gravity flowMoves parts toward the front chute
↕
Adjustable chuteControls the flow of parts
▰
Steel constructionBin and supporting frame
Original product data
Specifications
Dimensions and prices shown exactly as listed in the supplied website files.
| Model | Capacity | Volume | Length | Width | Height | Listed price |
|---|---|---|---|---|---|---|
| PH-30-12 | 2,000 lb. | 5 cu. ft. | 30 in. | 24 in. | 12 in. | $695.00 |
| PH-36-12 | 3,000 lb. | 6 cu. ft. | 36 in. | 24 in. | 12 in. | $775.00 |
| PH-36-16 | 3,000 lb. | 8 cu. ft. | 36 in. | 24 in. | 16 in. | $795.00 |
| PH-40-16 | 3,500 lb. | 10.5 cu. ft. | 40 in. | 28 in. | 16 in. | $995.00 |
| PH-30-CART | 2,000 lb. | — | 32 in. | 26 in. | 21–31 in. | $295.00 |
| PH-36-CART | 3,000 lb. | — | 38 in. | 26 in. | 21–31 in. | $325.00 |
| PH-40-CART | 3,500 lb. | — | 42 in. | 30 in. | 21–31 in. | $355.00 |
R.E. Williams, Inc.
Talk with us about the Parts Handler.
Phone270-766-8283
Address215 Commerce Parkway
Hodgenville, KY 42701
